Light from below. Drama from within.

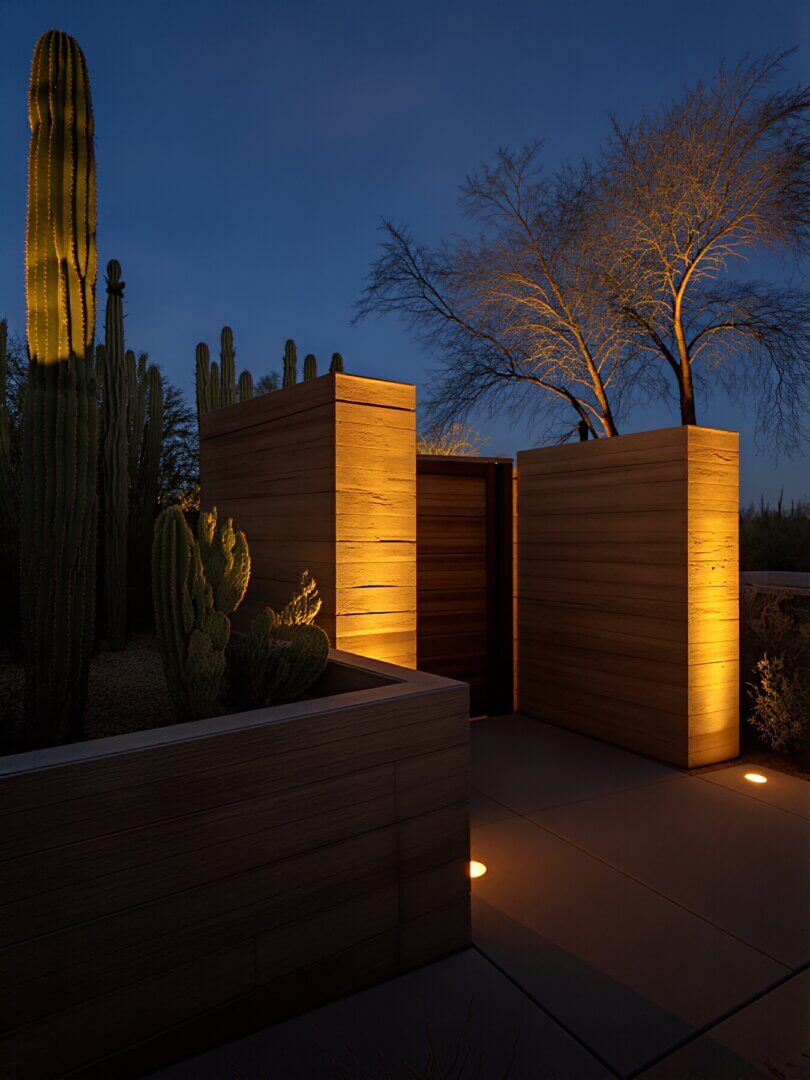

Vermat In-Ground Light Systems turn the ground plane into a source of architectural expression. Engineered to be embedded in paving, decking, plazas, and landscape surfaces, these luminaires project controlled beams of light upward — washing façades, grazing stone textures, defining pathways, and dramatising trees and sculpture after dark. Built to endure the most punishing conditions, every Vermat in-ground fixture is a sealed, load-bearing assembly that resists water immersion, heavy vehicle traffic, thermal shock, and corrosion, while delivering the same precision optics and colour quality that define all Vermat lighting systems. Whether illuminating a private garden path, a luxury hotel courtyard, or a public waterfront esplanade, Vermat in-ground lights disappear by day and perform by night.


PRODUCTS





Key Features & Customization
High Load-Bearing Construction

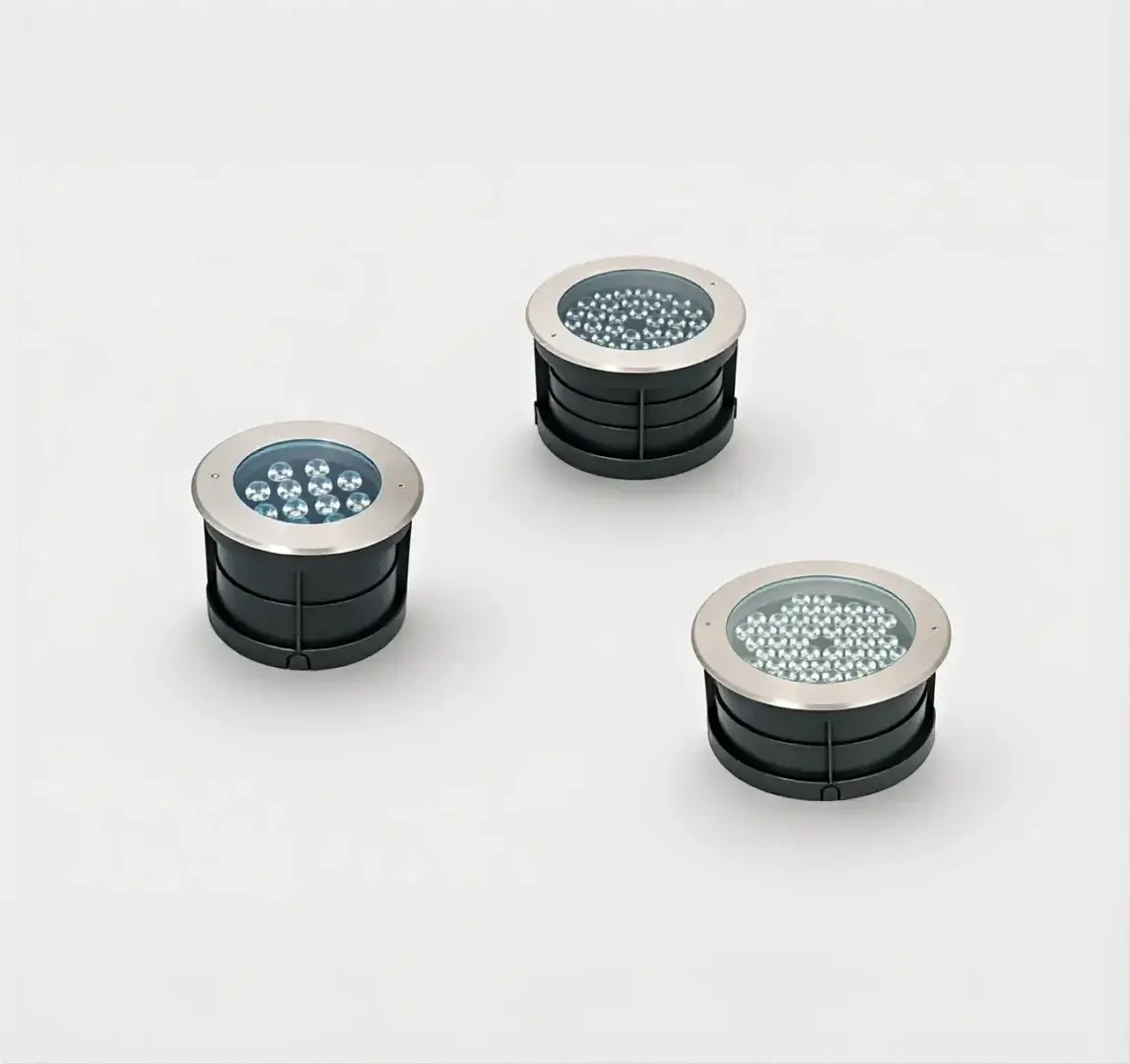

Housings are precision-machined from marine-grade 316 stainless steel or copper-free aluminium with a reinforced bezel, tested to withstand static loads up to 5,000 kg and dynamic loads of slow-moving vehicles. Tempered or laminated glass covers, up to 20 mm thick, resist abrasion, vandalism, and thermal stress, ensuring reliable service in driveways, pedestrian zones, and even road crossings.
Precision Up-Lighting Optics
Each luminaire offers a range of beam distributions — from narrow 8° spot to wide 60° flood, plus asymmetric wall-wash and elliptical path optics. TIR lenses and anti-glare louvres control spill light and direct the beam exactly where the design intends, whether grazing a stone wall or uplighting a canopy.
Superior Weather Protection
Standard ingress protection of IP67 — dust-tight and submersible to 1 metre — with IP68 versions available for continuous immersion in fountains, pools, or tidal zones. Sealing is achieved through double-stage silicone gaskets, pressure-equalised construction, and factory-fitted cable glands, eliminating water ingress even under thermal cycling.
Material & Finish Options
Choose from marine-grade 316 stainless steel in natural, powder-coated, or PVD finishes, or architectural bronze and copper for patina effects. Custom RAL colours and textured stone-matching collars are available to integrate the fixture seamlessly into any paving or landscape palette.
Smart Control & Scene Integration
Compatible with DALI, 0-10V, and wireless protocols such as Casambi, Vermat in-ground lights can be individually dimmed, zoned, or choreographed into dynamic scenes. Integration with timers, occupancy sensors, and astronomical clocks enables automated dusk-to-dawn operation and energy-saving schedules.
Anti-Glare & Visual Comfort
Recessed light sources, internal honeycomb louvres, and controlled beam cut-offs ensure that the high-intensity lamp is never directly visible to pedestrians. The result is a soft, even pool of light that enhances safety and atmosphere without visual discomfort.
Performance & Durability
- Load Capacity: static load up to 5,000 kg; dynamic load rated for slow-moving vehicles.
- Ingress Protection: Impact Resistance: IK10 glass and bezel; covers resist vandalism and abrasion.
- Corrosion Resistance: 316 stainless steel or copper-free aluminium; ISO 9227 salt spray tested.
- Colour Quality: CRI/Ra > 90, MacAdam 2-step binning; 2700K, 3000K, 4000K, and tunable options.
- Lifespan: L90 > 50,000 hours at Ta 25°C; thermal management designed for prolonged in-ground operation.
- Operating Temperature: -20°C to +50°C ambient; cold-start tested to -30°C.

Applications

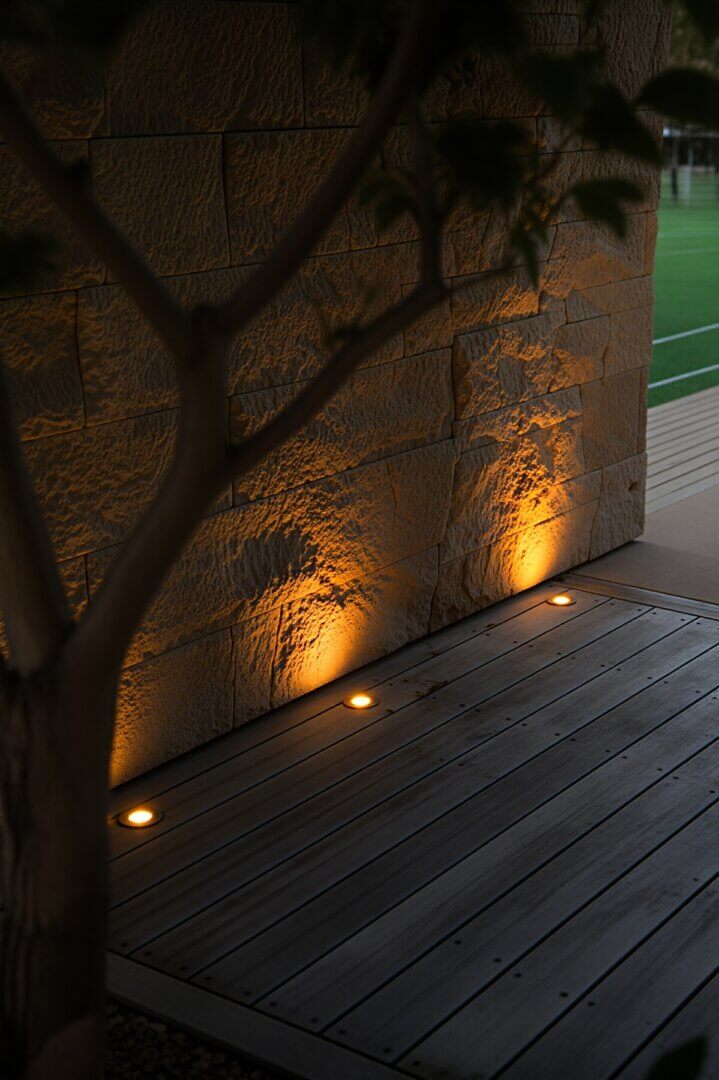

- Landscape and pathway lighting in private gardens and public parks

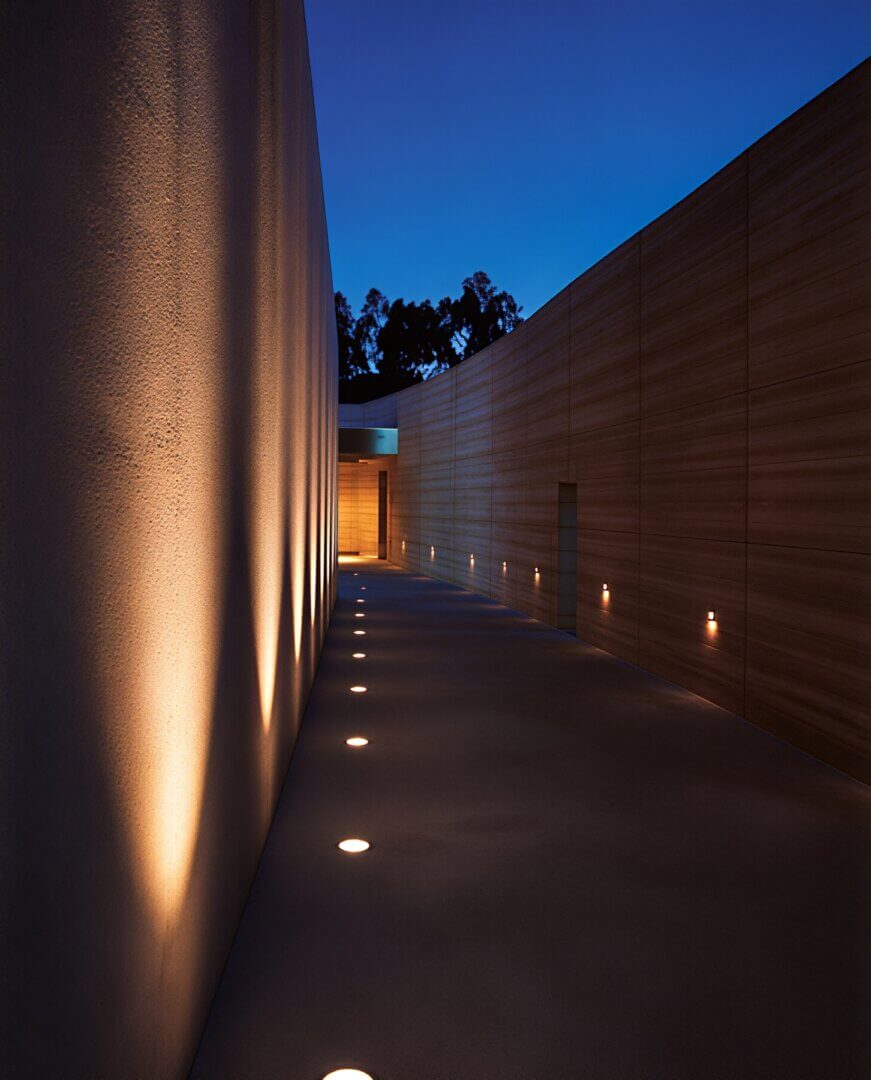

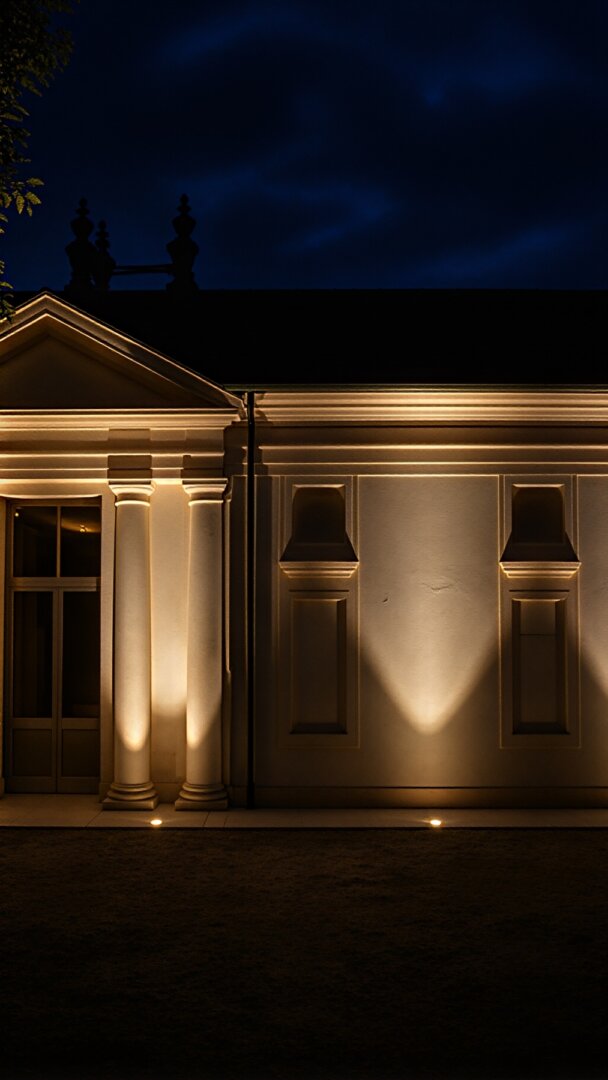

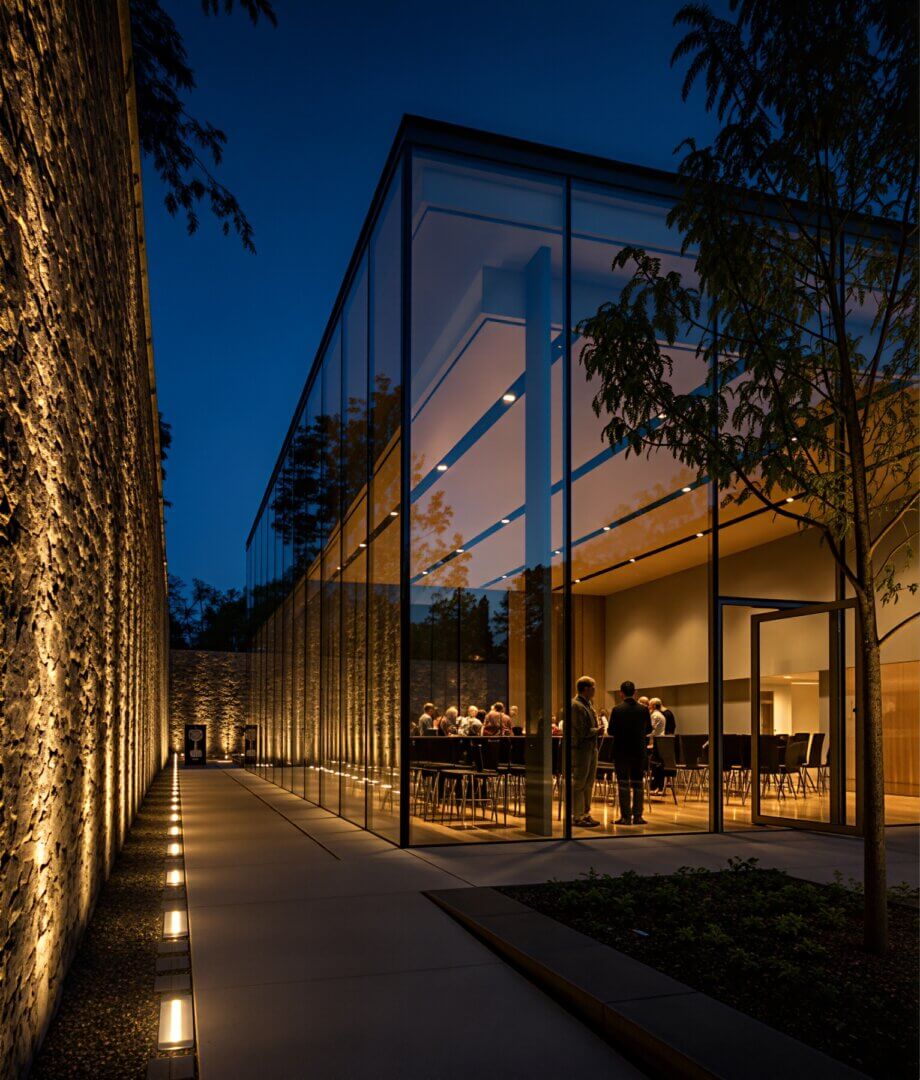

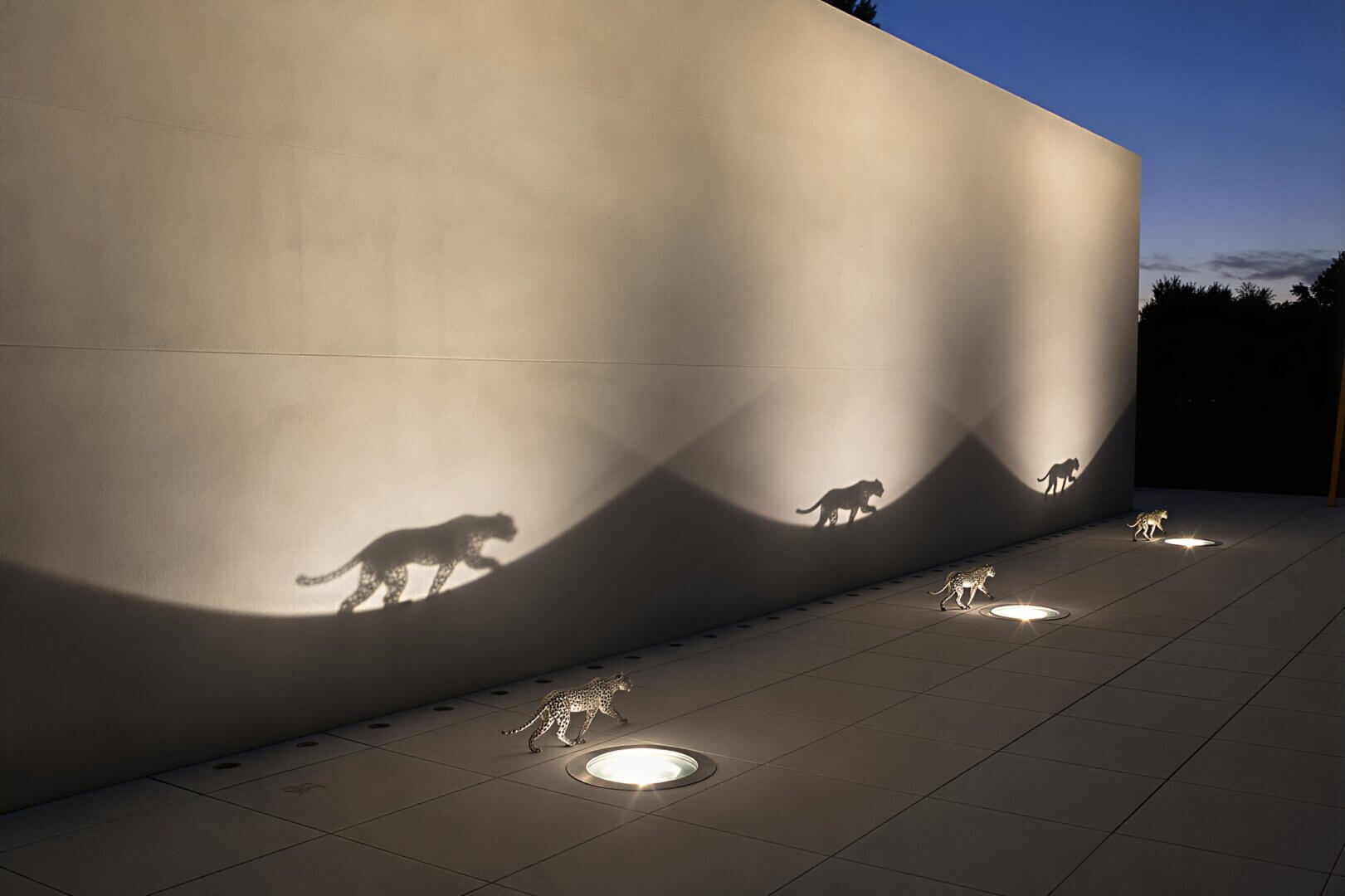

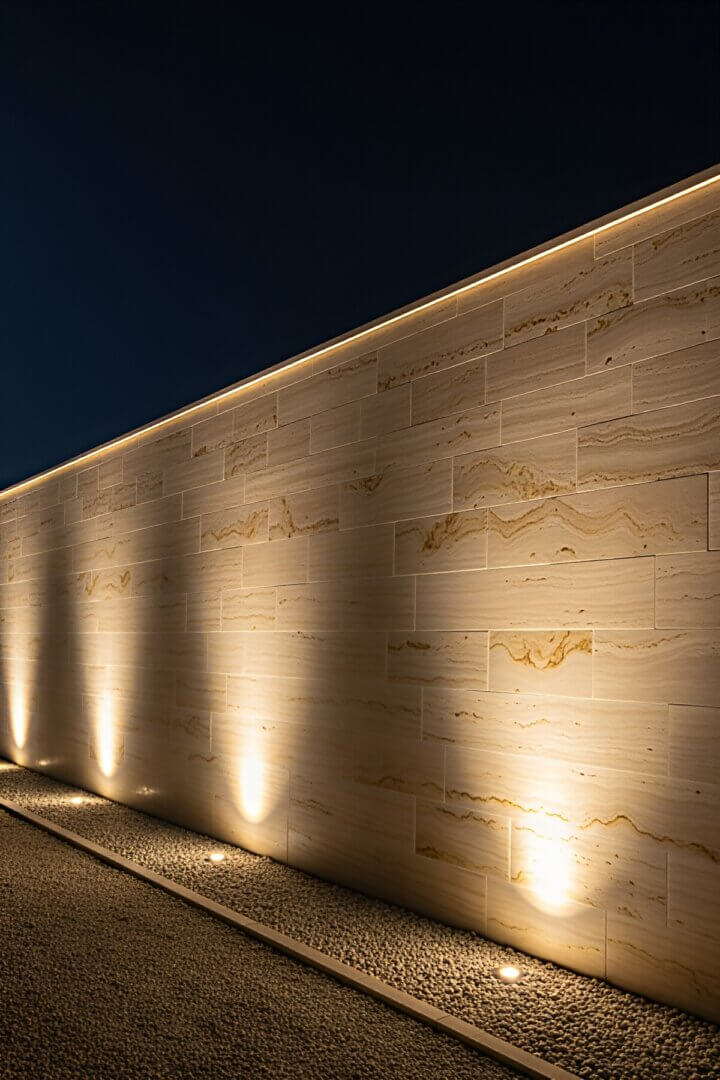

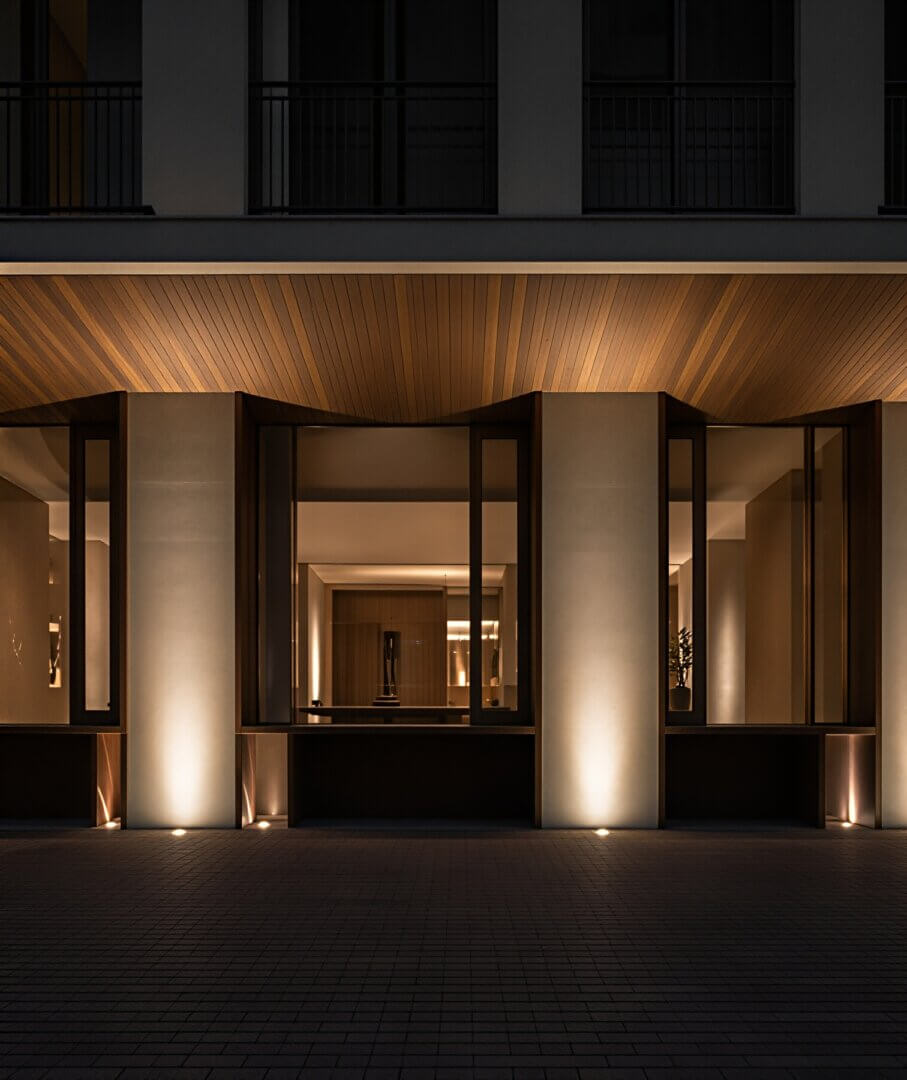

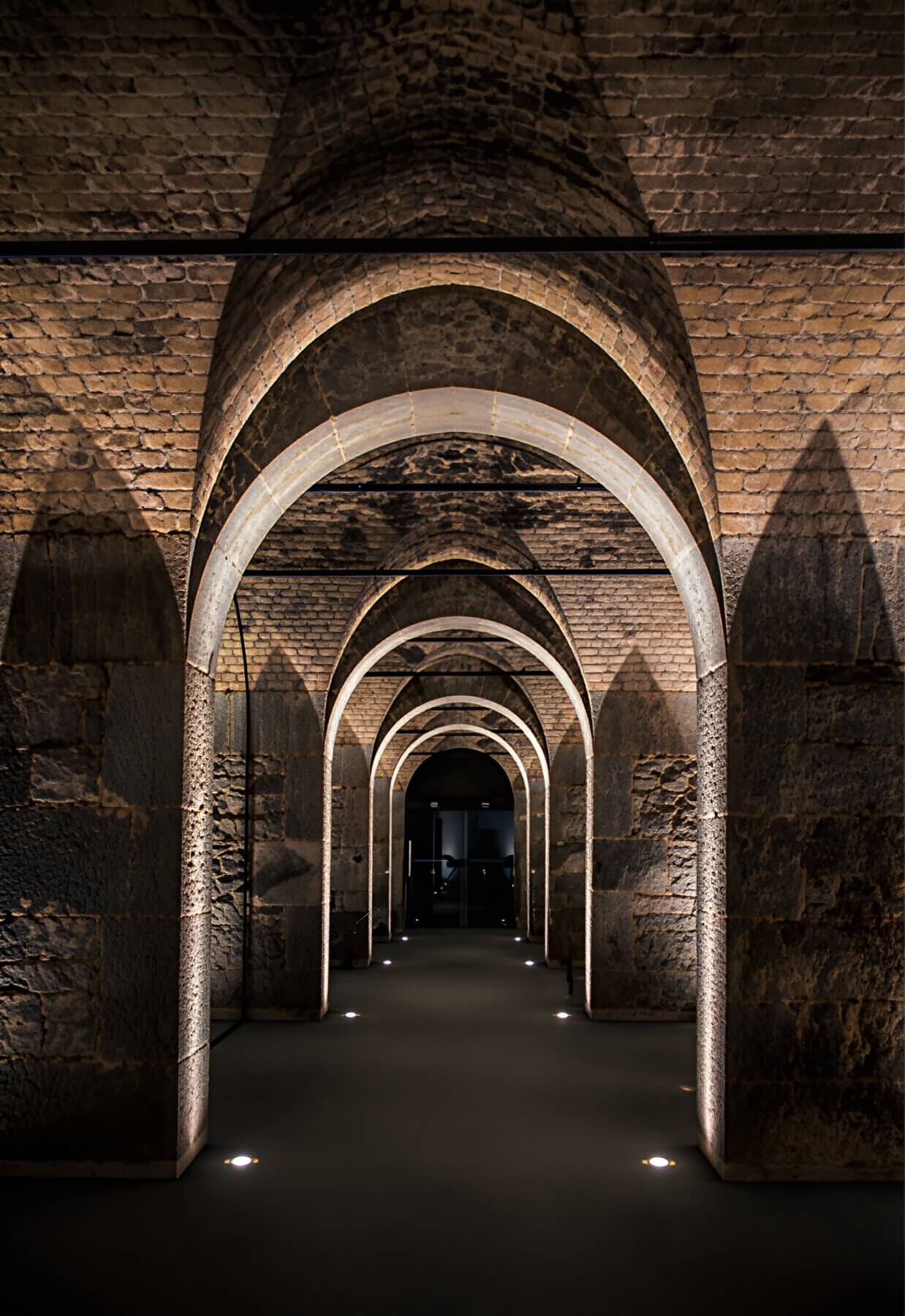

- Façade and architectural wall grazing

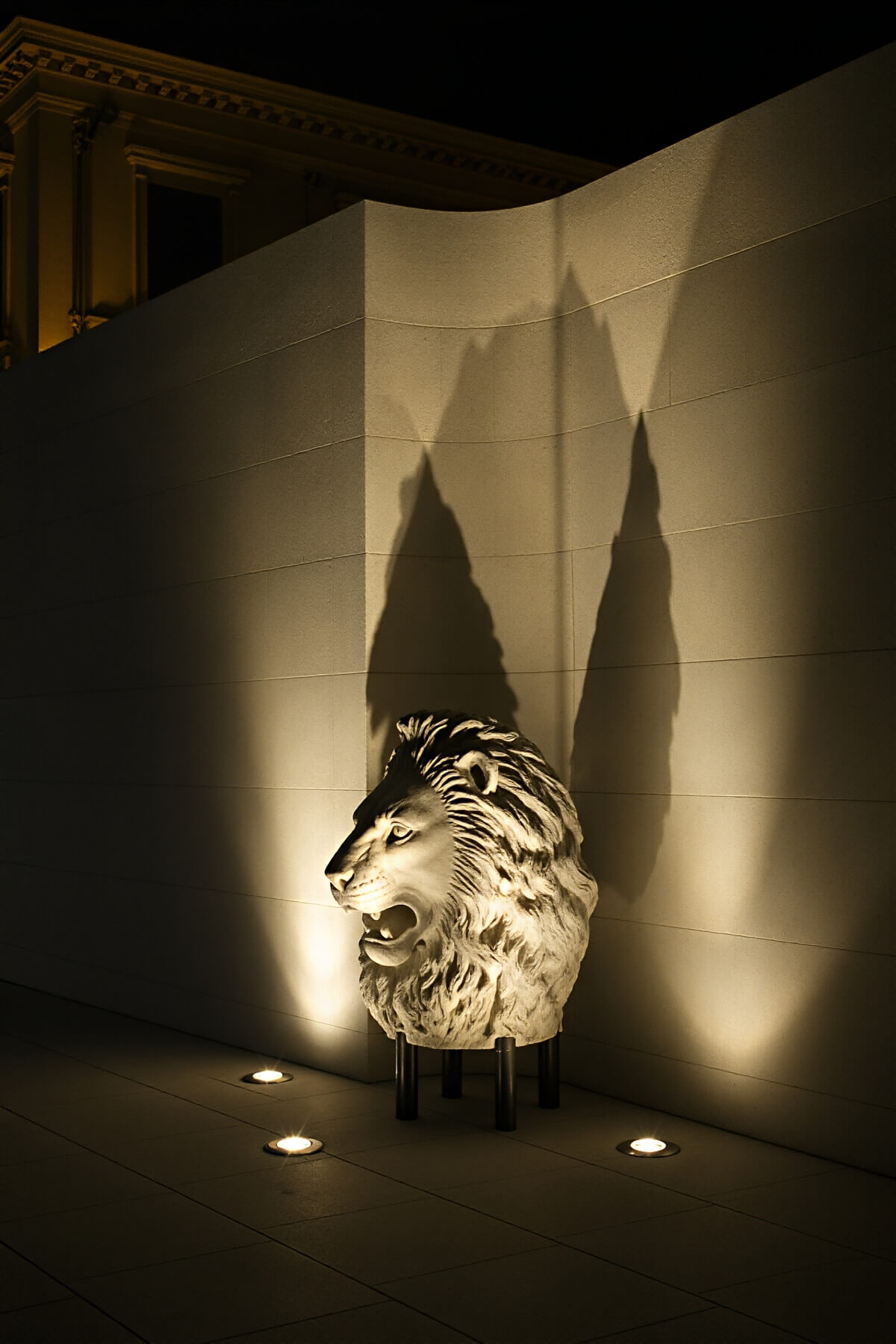

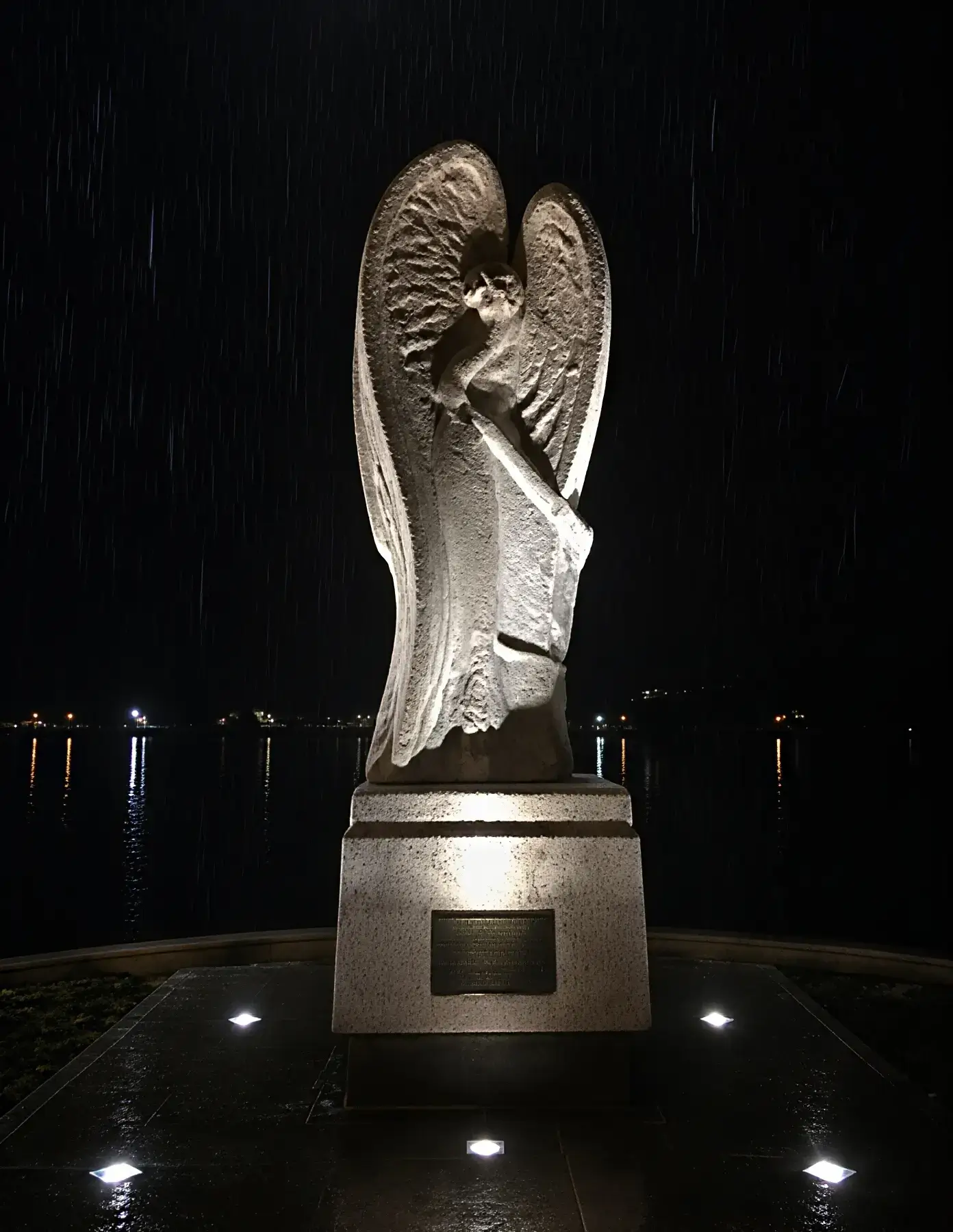

- Tree, sculpture, and monument uplighting
- Plazas, squares, and waterfront promenades
- Hotel courtyards, pool decks, and spa surroundings
- Driveways, entrance courts, and valet areas
- Fountains, water features, and submerged applications (IP68)









Technical Specifications
| Housing Material | 316 stainless steel / copper-free aluminium / bronze |
| Cover Material | Tempered or laminated glass, 12–20 mm |
| Ingress Protection | IP67 standard; IP68 optional |
| Impact Rating | IK10 |
| Load Capacity | Static 5,000 kg; dynamic (slow vehicle) |
| LED Colour Temperatures | 2700K / 3000K / 4000K; tunable optional |
| CRI | > 90 |
| Beam Angles | 8° / 15° / 24° / 36° / 60°; asymmetric wall-wash |
| Dimming & Control | DALI, 0-10V, Casambi, KNX |
| Lifespan | L90 > 50,000 h @ Ta 25°C |
| Operating Temperature | -20°C to +50°C |
| Certifications | CE, CCC, EN 60598, EN 62471, ISO 9227 |
